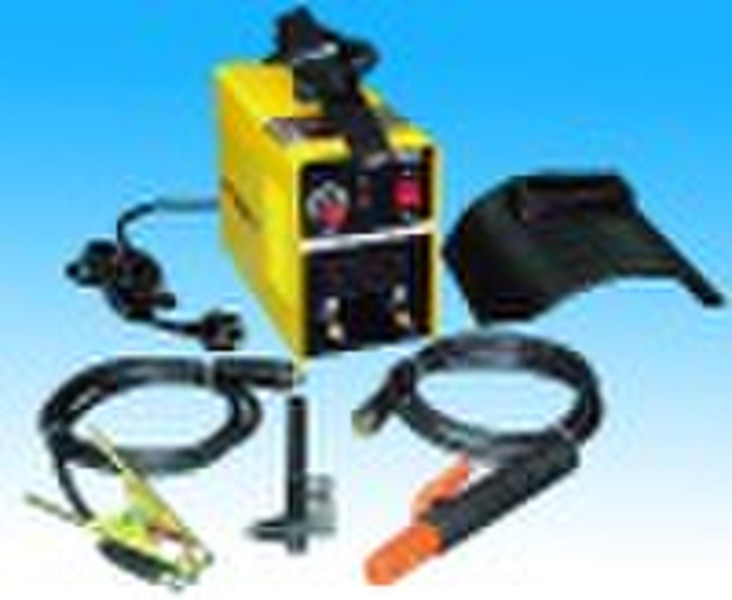

ZX7-140 MMA DC Inverter Welder

♣MMA(ARC) Inverter Welder1.It has small volume, light weight, efficient energy-conservation,a portable electric arc welding machines.;2.It has good capacity of striking arc anti-jamming and well propelling adjustable function;3.The arc is stable, and the spatter is small;4.Good welding quality, deep molten pool and high intensity;5.It will take self-protection when the over-voltage or over-current happens;6.It can continuously work, its performance is very stable, and it has the function of self-compensation for voltage fluctuation;7.It is suitable for welding electrode of sorts of acid or alkali.8.It can sustain fiber electrode to weld from down to up. ♣Technical Parameter: Type Content ZX7-140 Input Power Voltage(freguency)(V;HZ) 220±15%50/60 No-load Voltage(V) 56 Output Current Adjustment range(A) 10-140 Rated Output Voltage(V) 25.6 Rated Duty Cycle(%)25 60 No-load Consumption(W) 40 Efficency(%) 85 Power Factor(COSφ) 0.93 Weight 5 Measurement (mm) 371×153×232 Insulation Class F Protection Class IP23 Arc Force Adjustment range(A) --- Suitable Diameter of Rod (mm) 1.6-3.2 Client's own logo will be accepted when the quantity is above 50pcs.
